Spherical Roller Bearings
With more than 50 years of experience in the bearings industry, DEEP CHAND DAYAL CHAND & CO. is India’s preferred Bearing Supplier.
DCDC designs and manufactures spherical roller bearings which have the capacity to bear high demanding conditions. These roller bearings can resist raptus, maintain dimension stability, can support high radial loads and moderate axial loads. These bearings resist wear in spite of constant vibration, shock loads and misalignment. The performance improvements include extra exactness on the bore and outside the diameter. The spherical roller bearings are designed to adapt heavy radial loads as well as heavy axial loads in both directions.

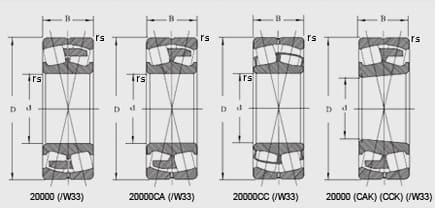

| SUFFIX | Spherical roller bearings | ||||
| CC | flangeless inner ring, pressed steel cage | MB | flanges on inner ring, machined brass cage | K | tapered bore (1:2 on diameter) |
| C3 | radial clearance greater than normal | C4 | radial clearance greater than C3 | W33 | lubrication groove and three holes in outer ring |
| CA | no middle flange on inner ring, machined brass cage | ||||
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
BASIC DESIGNATIONS |
MASS
~ |
||||||
| d | D | B | r1,2 min |
dynamic C |
static Co |
grease | oil | cylindrical bore |
tapered bore |
|
| mm | kN | r/min | kg | |||||||
| 20 | 52 | 15 | 1.1 | 30.80 | 31.20 | 6000 | 7500 | 21304CA | 0.17 | |
| 25 | 52 52 52 62 |
18 18 18 17 |
1 1 1 1 |
38.90 38.90 41.00 41.50 |
40.80 40.80 43.70 44.20 |
8000 8000 8000 5300 |
10000 10000 10000 6700 |
22205CC 22205CA 22205CTNI 21305CA |
0.19 0.19 0.18 0.28 |
|
| 30 | 62 62 62 72 |
20 20 20 19 |
1 1 1 1, 1 |
33.50 51.80 51.80 55.80 |
38.20 56.80 56.80 62.00 |
5300 6300 6700 4500 |
6700 8000 8500 6000 |
22206 22206CC 22206CA 21306CA |
22206K 22206CCK 22206CAK 21306CAK |
0.29 0.30 0.33 0.41 |
| 40 | 80 80 80 90 90 90 90 |
23 23 23 23 33 33 33 |
1, 1 1, 1 1, 1 1, 5 1, 5 1, 5 1, 5 |
49.80 80.70 78.50 86.20 73.50 116.00 115.30 |
68.50 90.60 90.80 90.40 90.50 129.00 126.60 |
4500 5000 5000 3600 4000 4300 4500 |
5600 6000 6300 4500 5000 5300 6000 |
22208 22208CC 22208CA 21308CA 22308 22308CC 22308CA |
22208K 22208CCK 22208CAK 21308CAK 22308K 22308CCK 22308CAK |
0.56 0.53 0.52 0.74 1.04 1.04 1.04 |
| 45 | 85 85 85 100 100 100 100 |
23 23 23 25 36 36 36 |
1, 1 1, 1 1, 1 1, 5 1, 5 1, 5 1, 5 |
52.20 142.00 |
73.20 97.60 95.20 110.40 140.00 170.00 170.00 |
4000 4500 4500 3200 3600 3800 4000 |
5000 5600 6000 4000 450 4800 5300 |
22209 22209CC 22209CA 21309CA 22309 22309CC 22309CA |
22209K 22209CCK 22209CAK 21309CAK 22309K 22309CCK 22039CAK |
0.59 0.59 0.58 1.02 1.39 1.38 1.38 |
| 50 | 90 90 90 110 110 110 110 |
23 40 |
1, 1 1, 1 1, 1 2 2 2 2 |
52.20 89.00 83.80 120.00 128.00 178.00 178.00 |
73.20 111.00 102.00 140.00 170.00 212.00 212.00 |
3800 4000 4300 2800 3400 3400 3800 |
4800 5000 5300 3800 4300 4300 4800 |
22210 22210CC 22210CA 21310CA 22310 22310CC 22310CA |
22210K 22210CCK 22210CAK 21310CAK 22310K 22310CCK 22310CAK |
0.69 0.63 0.63 1.30 1.83 1.85 1.79 |
| 55 | 100 100 100 120 120 120 120 |
25 25 25 29 43 43 43 |
1, 5 1, 5 1, 5 2 2 2 2 |
60.00 106.00 106.00 142.00 155.00 210.00 210.00 |
87.20 126.00 126.00 170.00 198.00 252.00 252.00 |
3400 |
4300 4500 5000 3400 3800 3800 4300 |
22211 22211CC 22211CA 21311CA 22311 22311CC 22311CA |
22211K 22211CCK 22211CAK 21311CAK 22311K 22311CCK 22311CAK |
0.86 0.86 0.85 1.65 2.30 2.35 2.31 |
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
BASIC DESIGNATIONS |
MASS
~ |
||||||
| d | D | B | r1,2 min |
dynamic C |
static Co |
grease | oil | cylindrical bore |
tapered bore |
|
| mm | kN | r/min | kg | |||||||
| 60 | 110 110 110 130 130 130 130 |
28 28 28 31 46 46 46 |
1, 5 1, 5 1, 5 2, 1 2, 1 2, 1 2, 1 |
81.80 123.50 118.30 162.00 168.00 244.20 244.20 |
122.00 154.00 145.80 195.00 225.00 295.60 295.60 |
3200 3200 3600 2400 2800 2800 3200 |
4000 4000 4500 3200 3600 3600 4000 |
22212 22212CC 22212CA 21312CA 22312 22312CC 22312CA |
22212K 22212CCK 22212CAK 21312CAK 22312K 22312CCK 22312CAk |
1.20 1.12 1.20 2.08 2.88 2.95 2.92 |
| 65 | 120 120 120 140 140 140 140 |
31 31 31 33 48 48 48 |
1, 5 1, 5 1, 5 2, 1 2, 1 2, 1 2, 1 |
88.50 151.00 151.00 182.00 188.00 265.00 265.00 |
128.00 193.50 193.50 228.00 252.00 320.00 320.00 |
2800 2800 3200 2200 2400 2400 3000 |
3600 3600 4000 3000 3200 3200 3800 |
22213 22213CC 22213CA 21313CA 22313 22313CC 22313CA |
22213K 22213CCK 22213CAK 21313CAK 22313K 22313CCK 22313CAK |
1.55 1.52 1.51 2.57 3.49 3.55 3.51 |
| 70 | 125 125 125 150 150 150 150 |
31 31 31 35 51 51 51 |
1, 5 1, 5 1, 5 2, 1 2, 1 2, 1 2, 1 |
95.00 151.00 151.00 212.00 230.00 300.00 300.00 |
142.00 195.00 195.00 268.00 315.00 362.00 362.00 |
2600 3000 3000 2000 2200 2200 2800 |
3400 3800 3800 2800 3000 3000 3400 |
22214 22214CC 22214CA 21314CA 22314 22314CC 22314CA |
22214K 22214CCK 22214CAK 21314CAK 22314K 22314CCK 22314CAK |
1.66 1.60 1.63 3.11 4.21 4.35 4.32 |
| 75 | 130 130 130 160 160 160 160 |
31 31 31 37 55 55 55 |
1, 5 1, 5 1, 5 2, 1 2, 1 2, 1 2, 1 |
95.00 162.70 162.70 238.00 262.00 348.00 348.00 |
142.00 214.50 214.50 302.00 388.00 446.70 446.70 |
2400 2400 3000 1900 2000 2000 2600 |
3200 3200 3800 2600 2800 2800 3200 |
22215 22215CC 22215CA 21315CA 22315 22315CC 22315CA |
22215K 22215CCK 22215CAK 21315CAK 22315K 22315CCK 22315CAK |
1.73 1.82 1.69 3.76 5.23 5.28 5.89 |
| 80 | 140 |
33 33 33 39 58 58 |
2 2 2 2, 1 2, 1 2, 1 |
115.00 174.40 174.40 260.00 288.00 391.00 |
180.00 233.80 233.80 332.00 405.00 507.00 |
2200 2200 2800 1800 1900 2400 |
3000 3000 3400 2400 2600 3000 |
22216 22216CC 22216CA 21316CA 22316 22316CA |
22216K 22216CCK 22216CAK 21316CAK 22316K 22316CAK |
2.28 2.13 2.26 4.47 6.30 6.32 |
| 85 | 150 150 150 180 180 180 |
36 36 36 41 60 60 |
2 2 2 3 3 3 |
145.00 212.80 212.80 298.00 308.00 432.00 |
228.00 282.30 282.30 385.00 440.00 560.00 |
2000 2000 2600 1700 1800 2200 |
2800 2800 3200 2200 2400 2800 |
22217 22217CC 22217CA 21314CA 22317 22317CA |
22217K 22217CCK 22217CAK 21314CAK 22317K 22317CAK |
2.83 2.67 2.87 5.23 7.36 7.27 |
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
BASIC DESIGNATIONS |
MASS
~ |
||||||
| d | D | B | r1,2 min |
dynamic C |
static Co |
grease | oil | cylindrical bore |
tapered bore |
|
| mm | kN | r/min | kg | |||||||
| 90 | 160 160 160 160 190 190 190 |
40 40 40 52.4 43 64 64 |
2 2 2 2 3 3 3 |
168.00 248.00 248.00 451.00 320.00 365.00 496.00 |
272.00 337.00 337.00 576.00 420.00 542.00 64.00 |
1900 1900 2400 1900 1600 1700 2200 |
2600 |
22218 22218CC 22218CA 23218CA 21318CA 22318 22318CA |
22218K 22218CCK 22218CAK 21318CAK 22318K 22318CAK |
4.00 3.28 3.67 4.55 6.17 8.88 8.63 |
| 95 | 170 170 200 200 200 |
43 43 45 67 67 |
2, 1 2, 1 3 3 3 |
212.00 282.70 355.00 385.00 530.00 |
322.00 390.30 485.00 570.00 705.00 |
1800 2200 1700 1600 2000 |
2400 2800 2200 2000 2600 |
22219 22219CA 21319CA 22319 22319CA |
22219K 22219CAK 21319CAK 22319K 22319CAK |
4.55 4.57 7.15 10.38 9.97 |
| 100 | 165 180 180 180 215 215 215 |
52 46 46 60.3 47 73 73 |
2, 1 2, 1 2, 1 2, 1 3 3 3 |
326.00 222.00 316.00 420.00 385.00 450.00 618.00 |
494.00 358.00 435.00 630.00 530.00 668.00 832.00 |
1700 1700 2200 1600 1600 1400 1900 |
2200 2200 2600 2200 2000 1800 2400 |
23120CA 22220 22220CA 23220CA 21320CA 22320 22320CA |
23120CAK 22220K 22220CAK 23220CAK 21320CAK 22320K 22320CAK |
4.43 5.01 |
| 110 | 170 170 180 180 200 200 200 240 240 240 |
45 45 56 69 53 53 69.850 50 80 80 |
2 2 2 2 2, 1 2, 1 2, 1 3 3 3 |
288.00 288.00 376.00 458.00 288.00 410.00 520.00 46.00 545.00 715.00 |
456.00 456.00 578.50 775.00 465.00 588.00 800.00 65.00 832.00 968.00 |
2200 2200 1600 1600 1500 1900 1500 1400 1200 1700 |
3000 3000 2000 2000 1900 2400 1900 1800 1600 2200 |
23022 23022CA 23122CA 24122CA 22222 22222CA 23222CA 21322CA 22322 22322CA |
23022K 231CAK 22222K 22222CAK 23222CAK 21322CAK 22322K 22322CAK |
3.95 3.80 5.50 6.63 7.00 7.32 9.46 11.80 17.85 17.50 |
| 120 | 180 |
46 |
2 2 2 2 2 2, 1 2, 1 2, 1 3 3 |
304.00 304.00 380.00 457.00 575.00 342.00 395.70 610.00 645.00 845.00 |
501.00 501.00 675.00 725.00 998.00 565.00 690.00 955.00 992.00 1160.00 |
200 2000 1500 1400 1400 1300 1700 1300 1100 1500 |
2800 2800 2000 1800 1800 1700 2200 1700 1500 1900 |
23024 23024CA 24024CA 23124CA 24124CA 22224 22224CA 23224CA 22324 22324CA |
23024K 23124CAK 22224K 22224CAK 23224CAK 22324K 22324CAK |
4.30 4.17 5.05 7.85 9.65 9.07 9.14 11.70 22.38 22.20 |
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
BASIC DESIGNATIONS |
MASS
~ |
||||||
| d | D | B | r1,2 min |
dynamic C |
static Co |
grease | oil | cylindrical bore |
tapered bore |
|
| mm | kN | r/min | kg | |||||||
| 130 | 200 200 200 210 210 230 230 280 280 280 |
52 52 69 64 80 64 64 80 93 93 |
2 2 2 2 2 3 3 3 4 4 |
386.00 386.00 472.00 482.00 585.00 408.00 562.00 678.00 722.00 965.00 |
630.00 630.00 852.00 802.00 1030.00 708.00 832.00 1080.00 1140.00 1340.00 |
1900 1900 1400 1300 1300 1200 1600 1200 950 1400 |
2600 |
23026 23026CA 24026CA 23126CA 24126CA 22226 22226CA 23226CA 22326 22326CA |
23026K 23026CAK 23126CAK 22226K 22226CAK 23226CAK 22326K 22326CAK |
6.12 5.99 7.55 8.49 10.30 11.38 11.20 13.80 28.17 27.50 |
| 140 | 210 210 210 210 225 225 250 250 250 300 300 |
53 53 53 69 68 85 68 68 88 102 102 |
2 2 2 2 2, 1 2, 1 3 3 3 4 4 |
285.00 403.00 403.00 488.00 538.00 670.00 478.00 40.00 812.00 925.00 1130.00 |
635.00 679.00 679.00 895.00 905.00 1200.00 805.00 955.00 1300.00 1340.00 1610.00 |
950 1800 1800 1300 1200 1200 1000 1400 1100 900 1300 |
1300 2400 2400 1700 1600 1600 1400 1700 1500 1200 1700 |
23028 23028CA 23028CC 24028CA 23128CA 24128CA 22228 22228CA 23228CA 22328 22328CA |
23028K 23128CAK 22228K 22228CAK 23228CAK 22328K 22328CAK |
6.30 6.4 6.4 8.01 10.20 12.50 14.20 14.48 18.10 34.84 34.60 |
| 150 | 225 225 225 250 250 270 270 270 320 320 |
56 56 75 80 100 73 73 96 108 108 |
2, 1 2, 1 2, 1 2, 1 2, 1 3 3 3 4 4 |
328.00 432.00 570.00 738.00 890.00 508.00 750.00 948.00 1020.00 1270.00 |
768.00 744.00 1070.00 1250.00 1600.00 875.00 1130.00 1540.00 1740.00 1850.00 |
900 1700 1200 1100 1100 950 1300 1100 850 1200 |
1200 2200 1500 1400 1400 1300 1600 1400 1100 1500 |
23030 23030CA 24030CA 23130CA 24130CA 22230 22230CA 23230CA 22330 22330CA |
23030K |
8.19 |
| 160 | 240 240 240 270 270 290 290 290 340 340 |
60 |
2, 1 |
368.00 518.00 652.00 845.00 1040.00 642.00 920.80 1090.00 1040.00 1330.00 |
825.00 890.00 1230.00 1440.00 1880.00 1140.00 1290.00 1780.00 1700.00 1840.00 |
850 1700 110 1000 1000 900 1200 1100 800 950 |
1100 2200 1400 1300 1300 1200 1500 1400 1000 1300 |
23032 23032CA 24032CA 23132CA 24132CA 22232 22232CA 23232CA 22332 22332CA |
23032K |
9.60 9.48 12.20 19.80 24.40 22.20 22.95 29.40 51.00 51.9 |
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
BASIC DESIGNATIONS |
MASS
~ |
||||||
| d | D | B | r1,2 min |
dynamic C |
static Co |
grease | oil | cylindrical bore |
tapered bore |
|
| mm | kN | r/min | kg | |||||||
| 170 | 260 260 260 280 280 310 310 310 360 360 |
67 67 90 88 109 86 86 110 120 120 |
2.1 2.1 2.1 2.1 2.1 4 4 4 4 4 |
445.00 620.00 792.00 900.00 1070.00 720.00 975.00 1200.00 1150.00 1490.00 |
1010.00 1070.00 1520.00 1550.00 1930.00 1300.00 1500.00 2030.0 2060.00 2130.00 |
800 1600 1000 1000 1000 850 1100 900 750 950 |
1000 2000 1300 1300 1300 1100 1400 1200 950 1300 |
23034 23034CA 24034CA 23134CA 24134CA 22234 22234CA 23234CA 22334 22334CA |
23034K 23134CAK 22234K 22234CAK 23234CAK 22334K 22334CAK |
13.00 12.9 16.70 21.10 25.50 29.00 28.10 35.70 60.00 59.3 |
| 180 | 280 280 280 300 300 320 320 320 380 380 |
74 74 100 96 118 86 86 112 126 126 |
2.1 2.1 2.1 3 3 4 4 4 4 4 |
540.00 794.00 928.00 1050.00 1210.00 735.00 1010.00 1280.00 1260.00 1610.00 |
1230.00 |
750 1400 950 900 900 800 1100 850 700 900 |
950 1800 1200 1200 1200 1000 1300 1100 900 1200 |
23036 23036CA 24036CA 23136CA 24136CA 22236 22236CA 23236CA 22336 22336CA |
23036K 23036CAK 23136CAK 2223K 22236CAK 23236CAK 22336K |
17.60 |
| 190 | 290 290 290 290 320 320 340 340 340 400 340 |
75 75 100 100 104 128 92 92 120 132 92 |
2.1 2.1 2.1 2.1 3 3 4 4 4 5 4 |
555.00 |
1230.00 1350.00 1910.00 1910.00 2120.00 2590.00 1510.00 2490.00 2490.00 2530.00 2592.00 |
700 1300 900 900 850 850 750 800 800 670 850 |
900 |
23038 23038CA 24038 24038CA 23138CA 24138CA 22238 22238CA 23238CA 22338 22338CA |
23038K 23138CAK 22238K 22238CAK 23238CAK 22338K |
20.00 18.0 23.0 23.00 33.60 40.20 37.41 36.20 46.10 81.00 78.8 |
| 200 | 310 |
82 |
2.1 2.1 2.1 3 3 4 4 4 5 5 5 |
580.00 580.00 1120.00 1380.00 1580.00 920.00 1771.00 1610.00 1490.00 1930.00 495.00 |
1310.00 1310.00 2220.00 2460.00 2950.00 1740.00 2810.00 2790.00 2720.00 2730.00 1150.00 |
670 670 850 800 800 700 750 750 630 850 1000 |
850 850 1100 1000 1000 900 1000 1000 800 110 1400 |
23040 23040CA 24040CA 23140CA 24140CA 22240 22240CA 23240CA 22340 22340CA 23940CA |
23040K 23140CAK 22240K 22240CAK 23240CAK 22340K |
24.00 23.00 29.30 41.60 49.90 47.70 43.90 55.40 94.00 94.0 11.9 |
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
BASIC DESIGNATIONS |
MASS
~ |
||||||
| d | D | B | r1,2 min |
dynamic C |
static Co |
grease | oil | cylindrical bore |
tapered bore |
|
| mm | kN | r/min | kg | |||||||
| 220 | 340 340 370 400 400 400 460 460 |
90 118 120 108 108 144 145 145 |
3 3 4 4 4 4 5 5 |
760.00 1330.00 1570.00 1170.00 2287.00 2070.00 1690.00 2410.00 |
1810.00 2680.00 2820.00 2220.00 3220.00 3620.00 3200.00 3560.00 |
600 750 700 630 630 670 560 750 |
750 1000 950 800 800 900 700 950 |
23044 24044CA 23144CA 22244 22244CA 23244CA 22344 22344CA |
23044K 23144CAK 22244K 22244CAK 23244CAK 22344K |
28.80 38.10 51.50 61.50 58.40 78.50 120.00 119 |
| 240 | 360 360 400 440 500 |
92 118 128 120 155 |
3 3 4 4 5 |
792.00 1400.00 1790.00 1990.00 2680.00 |
2060.00 2850.00 3220.00 3192.00 4010.00 |
530 700 670 700 670 |
670 950 850 900 850 |
23048 24048CA 23148CA 22248CA 22348CA |
23048K 23148CAK |
35.50 40.80 63.70 82.4 150 |
| 260 | 400 400 440 480 |
104 140 144 174 |
4 4 4 5 |
1000.00 1790.00 2210.00 2800.00 |
2450.00 3740.00 4070.00 4750.00 |
500 630 600 630 |
630 850 800 800 |
23052 24052CA 23152CA 23252CA |
23052K 23152CA |
51.50 62.40 88.20 142 |
| 280 | 420 420 |
106 106 |
4 4 |
1080.00 1080.00 |
2680.00 2680.00 |
450 450 |
560 560 |
23056 23056CA |
23056K | 62.00 57.00 |
| 300 | 460 460 |
118 160 |
4 4 |
1800.00 2380.00 |
3400.00 4780.00 |
800 560 |
1000 700 |
23060CA 24060CA |
23060CAK | 71.50 97.6 |
| 480 | 870 | 310 | 7.5 | 6750.00 | 15200.00 | 340 | 430 | 23296CA | 835 | |
| 560 | 750 | 140 | 5 | 3050.00 | 7350.00 | 340 | 430 | 239 / 560CA | 183 | |
| 850 | 1030 | 136 | 5 | 3340.00 | 10000.00 | 260 | 530 | 238 / 850CA | 240 | |
Spherical Roller Bearings Reviewed by Anurag Singh Spherical Roller Bearings - For your industrial requirement buy high quality spherical roller bearings. Rating: 4.9
