The cylindrical roller bearings are the cylinders which can be used as rolling elements as opposed to balls in the ball bearings. The rollers have a great contact area with outer ring and distribute loads across an extensive surface. Subsequently, they have a relatively high radial load capacity and are suitable for high speeds. The double-row cylindrical roller bearings have a high radial rigidity and are primarily used for precision machine tools. By virtue of the line of contact between the rolling elements and raceways the cylindrical roller bearings have high radial load capacity and are suited for high-speed applications.

The cylindrical roller bearings from DCDC offer a complete range of both metric and inch sizes available. There are designated designs, special designs, bearings and cages that are available with pressed steel and polyamide throughout the range. The bearings are also available with lubrication holes and a machine lubrication groove on the outside surface and outer ring.

PREFIX	SUFFIX	Cylinderical roller bearings
R		separable bearing without removable inner (RNU) or outer ring (RN)
	E	modifited internal design - increased capacity	M	machined brass cage
	MA	machined brass cage centred on the outer ring	MB	polyamid cage
	TN	accuracy to ISO tollerance class 6	P6	accuracy to ISO tollerance class 6
	C2	radial clearance greater than normal	C3	radial clearance greater than C3
	C4	accuracy to ISO class 6 and clearance greater than normal	P63	accuracy to ISO class 6 and clearance greater than C3
	V	bearing without cage with full quantity of rolling elements

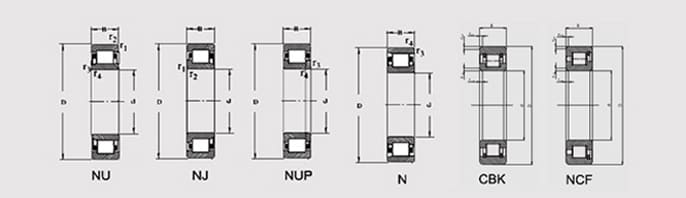

DIMENSIONS					BASIC LOAD RATING		LIMITING SPEEDS		BASIC DESIGNATIONS		MASS ~
d	D	B	r_1,2 min	r_3,4 min	dynamic C	static C_o	grease	oil	BASIC DESIGNATIONS		MASS ~
mm					kN		r/min				kg
15	35 35 35	11 11 11	0.6 0.6 0.6	0, 3 0.3 0.3	12.5 12.5 12.5	10.2 10.2 10.2	18000 18000 18000	22000 22000 22000	N202E NJ202E NJ202ETNT	NU202E NUP202E	0.048 0.48 0.047
17	40 40	12 12	0.6 0.6	0.3 0.3	19.7 19.8	17.0 17.1	15000 15000	18000 18000	NJ203E NJ203E TNT		0.09 0.07
20	47 47	14 14	1 1	0, 6 0, 6	25.1 25.1	22.0 22.0	13000 13000	16000 16000	N204E NJ204E	NU204E NUP204E	0.11 0.11
25	52 52 52 62 62 62	15 15 18 17 17 24	1 1 1 1.1 1.1 1.1	0, 6 0, 6 0, 6 1.1 1.1 1.1	28.6 28.6 27.5 40.2 40.2 42.7	27.0 27.0 26.8 36.5 36.5 40.9	11000 11000 11000 9500 9500 9500	14000 14000 14000 12000 12000 12000	N205E NJ205E NJ205M N305E NJ305E	NU205E NUP205E NUP2205 NU305E NUP305E NU2305EM	0.13 0.13 0.16 0.24 0.24 0.4
30	62 62 62 72 72	16 16 20 19 19	1 1 1 1.1 1.1	0, 6 0, 6 0.6 1.1 1.1	36.0 36.0 48.9 49.2 49.2	35.5 35.5 49.8 48.2 48.2	8500 8500 8000 8000 8000	11000 11000 11000 10000 10000	N206E NJ206E N306E NJ306E	NU206E NUP206E NUP2206EM NU306E NUP306E	0.22 0.22 0.38 0.38
35	72 72 72 80 80	17 17 23 21 21	1.1 1.1 1.1 1.5 1.5	0.6 0.6 1.1 1.1 1.1	46.5 46.5 49.0 62.0 62.0	48.0 48.0 51.2 63.2 63.2	7500 7500 7500 7000 7000	9500 9500 9500 9000 9000	N207E NH207E NJ2207E N307E NJ307E	NU207E NUP207E NU307E NUP307E	0.34 0.34 0.45 0.50 0.50
40	80 80 90 90 110	18 18 23 23 27	1.5 1.5 1.5 1.5 2	1.1 1.1 1.5 1.5 2	51.5 51.5 76.8 76.8 90.5	53.0 53.0 77.8 77.8 89.8	7000 7000 6300 6300 5600	9000 8000 8000 8000 6700	N208E NJ208E N308E NJ308E NUP308E	NUP208E NU308E NUP308E	0.39 0.39 0.67 0.67 1.15
45	85 85 85 100 100 100	19 19 23 25 25 25	1.1 1.1 1.1 1.5 1.5 1.5	1.1 1.1 1.1 1.5 1.5 1.5	58.5 58.5 61.4 93.0 93.0 93.0	63.8 63.8 67.8 98.0 98.0 98.0	6300 6300 6300 5600 5600 5600	8000 8000 8000 7000 7000 7000	N209E NJ209E NJ2209E N309E NJ309E NF309E	NU209E NUP209E NU309E NUP309E	0.45 0.45 0.54 0.95 0.95 0.95
50	80 90 90 90 110 110	16 20 20 23 27 27	1 1.1 1.1 1.1 2 2	0.6 1.1 1.1 1.1 2 2	31.0 61.2 61.2 64.2 105 105	34.0 69.2 69.2 73.6 112 112	8000 6000 6000 6000 5300 5300	9500 7500 7500 7500 6700 6700	NU1010M N210E NJ210E NJ2210EM N310E NJ310E	NU210E NUP210E NU310E NUP310E	0.32 0.51 0.51 0.65 1.2 1.2
55	100 100 100 120 120	21 21 25 29 29	1.5 1.5 1.5 2 2	1.1 1.1 1.1 2 2	80.2 80.2 75.3 128 128	95.5 95.5 87.2 138 138	5300 5300 5300 4800 4800	6700 6700 6700 6000 6000	N211E NJ211E NJ2211EM N311E NJ311E	NU211E NUP211E NU311E NUP311E	0.68 0.68 0.77 1.53 1.53
60	110 110 110 130 130	22 22 28 31 31	1.5 1.5 1.5 2.1 2.1	1.5 1.5 1.5 2.1 2.1	89.8 89.8 101 142 142	102 102 123 155 155	5000 5000 5000 4500 4500	6300 6300 6300 5600 5600	N212E NJ212E NJ2212E N312E NJ312E	NU212E NUP212E NU312E NUP312E	0.84 0.84 1.09 1.94 1.94
65	120 120 140 140	23 23 33 33	1.5 1.5 2.1 2.1	1.5 1.5 2.1 2.1	102 102 170 170	118 118 188 188	4500 4500 4000 4000	5600 5600 5000 5000	N213E NJ213E N313E NJ313E	NU213E NUP213E NU313E NUP313E	1.05 1.05 2.42 2.42
70	125 125 125 150 150	24 24 31 35 35	1.5 1.5 1.5 2.1 2.1	1.5 1.5 1.5 2.1 2.1	112 112 119 195 195	135 135 151 220 220	4300 4300 4300 3800 3800	5300 5300 5300 4800 4800	N214E NJ214E NJ2214E N314E NJ314E	NU214E NUP214E NU314E NUP314E	1.29 1.29 1.7 2.90 2.90
75	130 130 160 160	25 25 37 37	1.5 1.5 2.1 2.1	1.5 1.5 2.1 2.1	125 125 228 228	155 155 260 260	4000 4000 3600 3600	5000 5000 4500 4500	N215E NJ215E N315E NJ315E	NU215E NUP215E NU315E NUP315E	1.45 1.45 3.59 3.59

DIMENSIONS					BASIC LOAD RATING		LIMITING SPEEDS		BASIC DESIGNATIONS		MASS ~
d	D	B	r_1,2 min	r_3,4 min	dynamic C	static C_o	grease	oil	BASIC DESIGNATIONS		MASS ~
mm					kN		r/min				kg
80	140 140 170 170	26 26 39 39	2 2 2, 1 2, 1	2 2 2, 1 2, 1	132 132 245 245	165 165 282 282	3800 3800 3400 3400	4800 4800 4300 4300	N216E NJ216E N316E NJ316E	NU216E NUP216E NU316E NUP316E	1.74 1.74 4.05 4.05
90	160 160 190 190	30 30 43 43	2 2 3 3	2 2 3 3	172 172 298 298	215 215 348 348	3400 3400 3000 3000	4300 4300 3800 3800	N218E NJ218E N318E NJ318E	NU218E NUP218E NU318E NUP318E	2.44 2.44 6.07 6.07
95	170 170 200 200	32 32 45 45	2, 1 2, 1 3 3	2, 1 2, 1 3 3	208 208 315 315	262 262 380 380	3200 3200 2800 2800	4000 4000 3600 3600	N219E NJ219E N319E NJ319E	NU219E NUP219E NU319E NUP319E	2.90 2.90 6.62 6.62
100	180 180 215 215	34 34 47 47	2, 1 2, 1 3 3	2, 1 2, 1 3 3	235 235 365 365	302 302 425 425	3000 3000 2600 2600	3800 3800 3200 3200	N220E NJ220E N320E NJ320E	NU220E NUP220E NU320E NUP320E	3.34 3.34 8.04 8.04
105	190 190 190 225 225	36 36 36 49 49	2, 1 2, 1 2.1 3 3	2, 1 2, 1 2.1 3 3	185 185 224 322 322	235 235 238 392 392	2800 2800 2800 2200 2200	3600 3600 3600 3000 3000	N221 NJ221 NJ221E N321 NJ321	NU221 NUP221 NU321 NUP321	4.00 4.00 4.00 9.90 9.90
110	200 200 240 240	38 38 50 50	2, 1 2, 1 3 3	2, 1 2, 1 3 3	278 278 352 352	360 360 428 428	2600 2600 2000 2000	3400 3400 2800 2800	N222 NJ222 N322 NJ322	NU222 NUP222 NU322 NUP322	5.08 5.08 11.10 11.10
120	215 215 215 260 260	40 40 40 55 55	2, 1 2, 1 2.1 3 3	2, 1 2, 1 2, 1 3 3	322 322 247 440 440	422 422 249 522 522	2200 2200 2200 1900 1900	3000 3000 3000 2600 2600	N224 NJ224 NJ224E N324 NJ324	NU224 NUP224 NU324 NUP324	6.22 6.22 6.32 14.00 14.00
130	230 230 280 280	40 40 58 58	3 3 4 4	3 3 4 4	258 258 492 492	352 352 620 620	2000 2000 1700 1700	2800 2800 2200 2200	N226 NJ226 N326 NJ326	NU226 NUP226 NU326 NUP326	7.15 7.15 18.50 18.50
140	250 250 250 300 300	42 42 68 62 62	3 3 3 4 4	3 3 3 4 4	302 302 553 545 545	415 415 799 690 690	1800 1800 1800 1600 1600	2400 2400 2400 2000 2000	N228 NJ228 NJ2228EM N328 NJ328	NU228 NUP228 NU328	9.00 9.00 15.9 22.80 22.80
150	225 270 320	35 45 65	2.1 3 4	1.5 3 4	208 360 595	310 490 765	2600 1700 1500	3200 2200 1900	NU1030EM N230 N330		4.99 11.60 26.40
160	240 290 340	38 48 68	2.1 3 4	1.5 3 4	245 405 628	255 552 825	2400 1600 1400	3000 2000 1800	NU1032M N232 N332		6.2 14.70 32.20

DIMENSIONS					BASIC LOAD RATING		LIMITING SPEEDS		BASIC DESIGNATIONS	MASS ~
d	D	B	r_1,2 min	r_3,4 min	dynamic C	static C_o	grease	oil	BASIC DESIGNATIONS	MASS ~
mm					kN		r/min			kg
170	310 360	52 72	4 4	4 4	425 715	650 952	1500 1300	1900 1700	N234 N334	18.70 37.20
180	320 380	52 75	4 4	4 4	425 835	650 1100	1400 1200	1800 1600	N236 N336	20.00 42.50
220	270	24	1.5	1.5	181	385		1100	NDF1844V	2.8
240	300	28	2	2	240	490		1000	NCF1848V	4.4
270	360	60	2.1	1.5	790	1460		900	NCF2952V	18.5
380	480	46	2.1	1.5	627	1290		600	NCF1876V	19.2
22	47	18	2	1	35	26	-	-	CBK - 497*	0.14
30	61.935	19.05	2.7	1	37	44	-	-	CBK - 239*	0.27
49.930	80	15	0.3	0.3	28	33	-	-	CBK - 238*	0.27
